CQM Series Guided Thin Pneumatic Cylinder

Brand: SOLH ng Richge Technology

Pangkalahatang-ideya ng Produkto

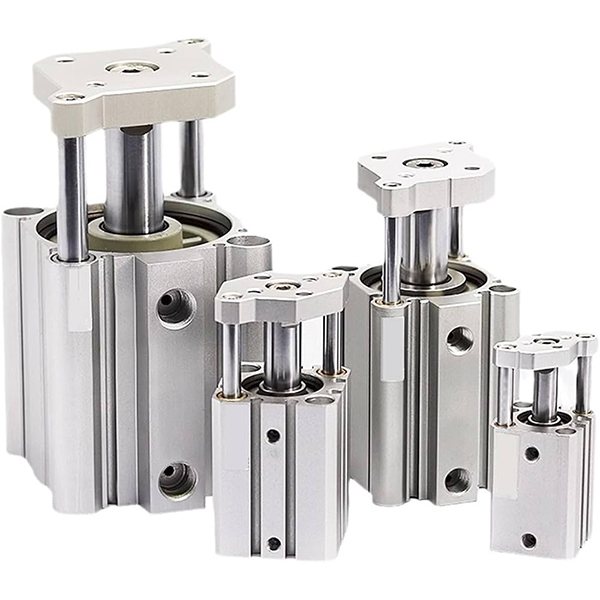

     SOLH CQM series high rigidity guided thin cylinder, interchangeable with imported CQM/CDQM. Built-in na double guide rod batay sa CQ2 thin cylinder structure. Lubos na nagpapabuti sa lateral load resistance at anti-rotation performance. Parehong haba ng katawan gaya ng CQ2, walang karagdagang panlabas na gabay na kailangan. Ang laki ng pag-mount na tugma sa CQ2/CQS, malawakang ginagamit para sa precision positioning, clamping at pushing na may side load.

Istraktura at Pangunahing Tampok

     -- Pinagsamang manipis na cylinder body + parallel double guide rods, load mounting plate sa front end;

     -- Hard anodized aluminum barrel, chrome plated piston rod at guide rods;

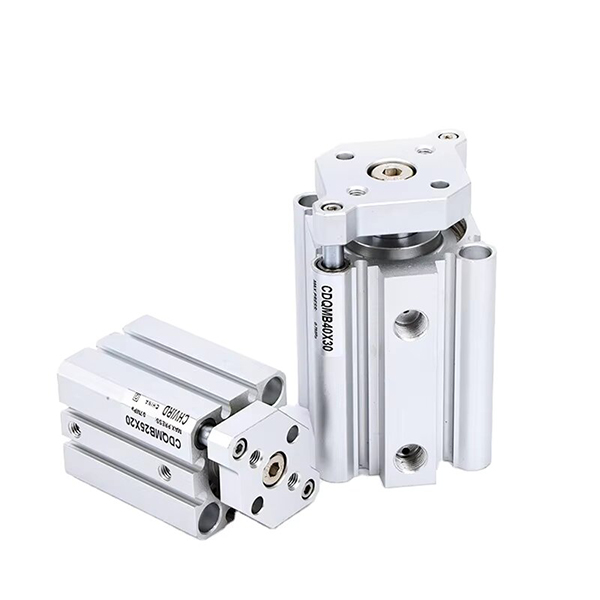

     -- Mga variant: CQM(non-magnetic), CDQM(magnet equipped), CQM-XB24 long life version;

     -- Lateral load capacity 2~4 beses na mas mataas kaysa sa karaniwang CQ2 cylinder, rotation tolerance ≤±0.2°;

     -- Karaniwang rubber buffer sa magkabilang dulo, walang opsyon sa air cushion;

     -- CDQM built-in magnet para sa magnetic switch detection, flexible sensor installation.

Model Coding Rule

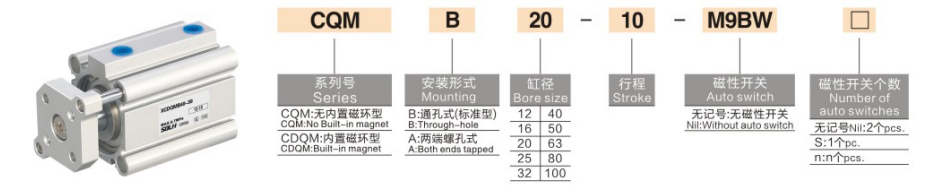

   1. Halimbawa: CDQMB20-50-M9B

     -- C: Built-in magnet (CDQM); blangko = non-magnetic (CQM)

     -- DQM: Series code para sa guided thin cylinder

     -- B/A: Uri ng pag-mount; B=sa pamamagitan ng butas; A=end tapped hole

     -- 20: Sukat ng bore:12/16/20/25/32/40/50/63/80/100 mm

     -- 50: Haba ng stroke 5~100mm

     -- M9B: Magnetic switch na opsyon

Teknikal na Pagtutukoy

Theoretical Thrust & Pull Force at Max Lateral Load @0.5MPa

Isang Buod ng Pangungusap

     SOLH CQM series integrated double guide rod thin pneumatic cylinder na may mahusay na anti-twist at mataas na lateral load capacity, perpektong precision actuator upang palitan ang standard CQ2 cylinder para sa automation clamping at positioning application.
